NES-15W Switching Power Supply 78 * 51 * 28mm Automatic Recovery

YUEQING WINSTON ELECTRIC CO.,LTD.
Contact Now

NES-15W Switching Power Supply 78 * 51 * 28mm Automatic Recovery

Brand Name : Winston/OEM

Model Number : NES-15W

Certification : CE,ROSH

Place of Origin : China,Zhejiang

MOQ : 1PCS

Price : USD4.67

Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD

Supply Ability : 10000PCS/Month

Delivery Time : 3-15days after get payment.

Packaging Details : Export standard carton box

Warranty : 2 Years

OEM : YES

ODM : YES

Dimensions : 78 * 51 * 28mm

Condition : Original New

Weight : 0.18KG

Single Output : power 15w

Working temperature : -10℃~+50℃

Input voltage range : 85-264VAC 120-370VDC 47-63Hz

Contact Now

NES-15W Single Output Power Supply 78 * 51 * 28mm Automatic Recovery


Summary

  • Single output: power 15w
  • Input voltage: 85-264VAC 120-370VDC

Technique parameter:

Model MS-100-5 MS-100-12 MS-100-15 MS-100-24 MS-100-48
DC output voltage current 5V 0-3A 12V 0-1.3A 15V 0-1A 24V 0-0.7A 48V 0-0.35A
Wave and noise 150mVp-p 150mVp-p 150mVp-p 200mVp-p 240mVp-p
Inlet stability ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Load stablity ±1% ±0.5% ±0.5% ±0.5% ±0.5%
Efficiency 79% 81% 81% 85% 82%
Adjustable range for DC voltage ±10% ±10% ±10% ±10% ±10%
input voltage range 85-264VAC 120-370VDC 47-63Hz
Inpact current Cold start current 45A/230VAC
Overload proctection 105%-160% cut off the output, automatic recovery
Over-voltage protection 115%-135% shut down O/P voltage, re-power on to recover
Setup rise hold up time 800ms, 60ms, 50ms/230vac at full load
Withstand voltage

I/P-O/P: 1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute

Isolation resistance I/P-O/P I/P-FG O/P-FG: 500VDC/100MΩ
Working temperature -10℃~+50℃
Overall dimension 78 * 51 * 28mm
Weight 0.18kg
Packing 35.5*21.3*35.6cm/120PCS/21.6kg

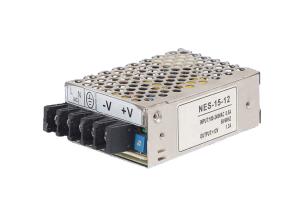

Product Picture

NES-15W Switching Power Supply 78 * 51 * 28mm Automatic Recovery

Dimensions

NES-15W Switching Power Supply 78 * 51 * 28mm Automatic Recovery

The installation of power supply

Please use the appropriate screw, fixed the power supply to the right environment, screw length should be less than 6 mm, not to the circuit boards, conductive danger to avoid touching the internal components. Power supply working space should have ventilation channel or exhaust equipment;In order to ensure the safety of using and reduce interference, please ensure that the grounding line should be good grounding, grounding line is greater than the AWGI#. After the installation, please measure the shell with the input, the output, insulation resistance in order to avoid electric shock.


About us

NES-15W Switching Power Supply 78 * 51 * 28mm Automatic Recovery

NES-15W Switching Power Supply 78 * 51 * 28mm Automatic RecoveryNES-15W Switching Power Supply 78 * 51 * 28mm Automatic Recovery

PS: If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.

Our Services

1. Prompt reply: Any inquiry or questions would be replied within 24 hours.

2. Quality Product: Manufacture company, each of the products is tested and calibrated.

3. Hospitality: Offer smiling service and your visiting is highly welcomed

4. Fast delivery: delivery time is within 3-7 days usually, other occasion depends on the order qty.

Trade Information

Trade Terms

FOB ,CIF ,CFR,EXW,DDP

Payment terms

T/T,L/C,Western union,Paypal,Escrow,MoneyGram

Payment conditions

30% deposit in advance,70% balance before shipping.

Delivery time

3-7working days after deposit,2-4 working days for inventory

Packing

Neutral carton,Wooden case for large size

Shipping

By sea,by air and by express delivery

Payment conditions

30% deposit in advance,70% balance before shipping.

Delivery time

3-7working days after deposit,2-4 working days for inventory

Packing

Neutral carton,Wooden case for large size

Shipping

By sea,by air and by express delivery
