S-400W Switching Power Supply 12 Voltage By Switching Overload Protection

Name: S400W Switching Power Supply 12 Voltage By Switching Overload Protection
Brand: Winston/OEM
Price: 19.8 USD

Wholesale S-400W Switching Power Supply 12 Voltage By Switching Overload Protection from china suppliers

Brand Name : Winston/OEM

Model Number : S-400W

Certification : CE,ROSH

Place of Origin : China,Zhejiang

MOQ : 1PCS

Price : USD19.8

Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD

Supply Ability : 10000PCS/Month

Delivery Time : 3-15days after get payment.

Packaging Details : Export standard carton box

Warranty : 2 Years

OEM : YES

ODM : YES

Dimensions : 215*115*50mm

Condition : Original New

Weight : 1.1KG

Single Output : power 400w

Working temperature : -10℃~+50℃

Input voltage range : 90-132VAC 180-264VDC 47-63Hz

Contact Now

S-400W Single Output Power Supply 12 Voltage By Switching Overload Protection

Summary

Single output: power 400w
Input voltage: 90-132VAC 180-264VDC

Technique parameter:

Model	S-400-5	S-400-12	S-400-24	S-400-48
DC output voltage current	5V 0-60A	12V 0-33A	24V 0-16.5A	48V 0-8.3A
Wave and noise	100mVp-p	120mVp-p	150mVp-p	200mVp-p
Inlet stability	±0.5%	±0.5%	±0.5%	±0.5%
Load stablity	±1%	±0.5%	±0.5%	±0.5%
Efficiency	73%	74%	81%	83%
Adjustable range for DC voltage	±10%	±10%	±10%	±10%
input voltage range	90-132VAC 180-264VDC 47-63Hz
Inpact current	Cold start current 50A/230VAC 25A/115VAC
Overload proctection	105%-135% cut off the output, automatic recovery
Over-voltage protection	115%-150% shut down O/P voltage, re-power on to recover
Setup rise hold up time	200ms, 50ms, 20ms/230vac at full load
Withstand voltage	I/P-O/P: 1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute
Isolation resistance	I/P-O/P I/P-FG O/P-FG: 500VDC/100MΩ
Working temperature	-10℃~+50℃
Overall dimension	21511550mm
Weight	1.1kg
Packing	45.531.526cm/20PCS/22kg

Product Picture

S-400W Switching Power Supply 12 Voltage By Switching Overload Protection

Dimensions

The installation of power supply

Please use the appropriate screw, fixed the power supply to the right environment, screw length should be less than 6 mm, not to the circuit boards, conductive danger to avoid touching the internal components. Power supply working space should have ventilation channel or exhaust equipment;In order to ensure the safety of using and reduce interference, please ensure that the grounding line should be good grounding, grounding line is greater than the AWGI#. After the installation, please measure the shell with the input, the output, insulation resistance in order to avoid electric shock.

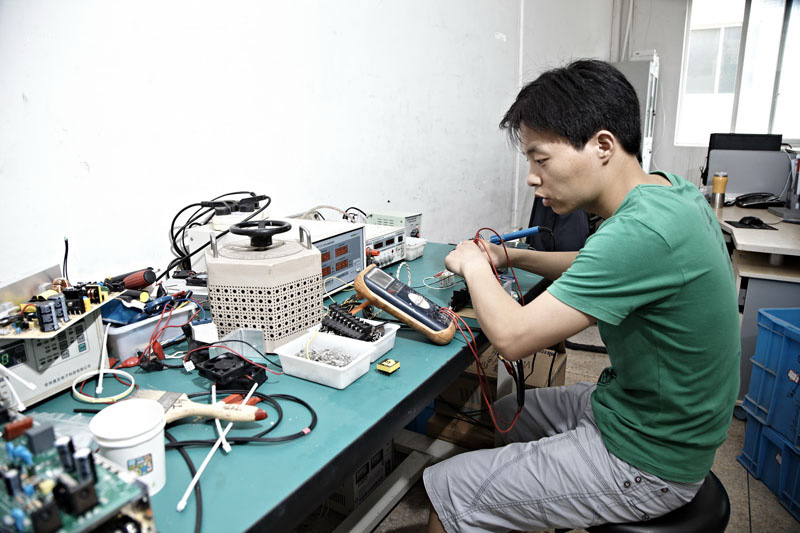

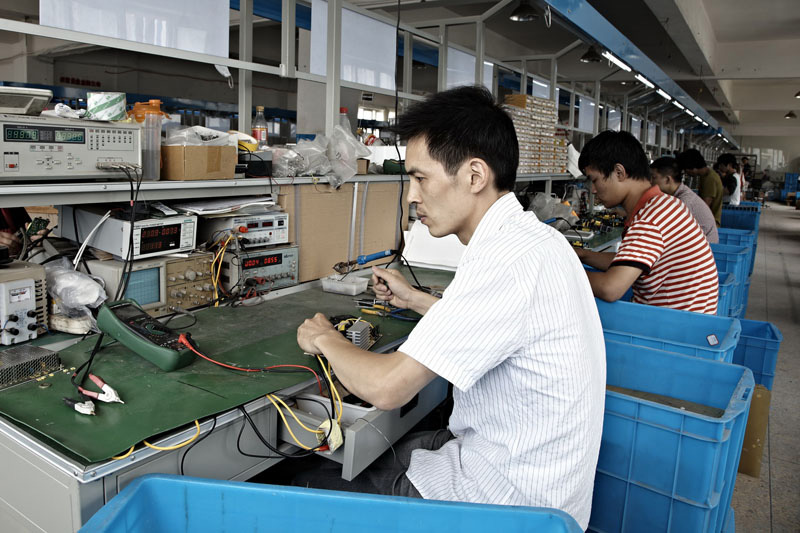

About us
